SpringBoot整合Redis

SpringBoot整合Redis的三种方式。Jedis、Lettuce、RedisTemplate（推荐）

一、集成前说明

常见问题

  1. bind配置请注释掉
  2. 保护模式设置为no
  3. Linux防火墙设置
  4. Redis服务器的IP地址和密码是否正确
  5. 忘记写访问Redis服务端口号和auth密码
  6. 无脑复制IP不改成自己的

二、SpringBoot集成Jedis

1. 概述

Jedis Client 是Redis 官网推荐的一个面向 Java 客户端，库文件实现了对各类API进行封装调用

2.步骤

2.1 创建SpringBoot项目

很简单就不说了

2.2 改POM

这里主要是要加入jedis依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.gong</groupId>
    <artifactId>SpringBootAndRedis</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>SpringBootAndRedis</name>
    <description>SpringBootAndRedis</description>
    <properties>
        <java.version>1.8</java.version>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.6.13</spring-boot.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--jedis-->
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
            <version>4.3.1</version>
        </dependency>
        <!--通用基础配置-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>{junit.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>{log4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>{lombok.version}</version>
            <optional>true</optional>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>{spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

        </dependencies>

    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <configuration>
                    <mainClass>com.gong.springbootandredis.SpringBootAndRedisApplication</mainClass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

2.3 写配置文件

server.port=7777
spring.application.name=SpringBootAndRedis

2.4 启动类

package com.gong.springbootandredis;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootAndRedisApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootAndRedisApplication.class, args);
    }

}

2.5 集成Jedis案例

package com.gong.springbootandredis.jedis;

import redis.clients.jedis.Jedis;

import java.util.*;

/**
 * @ClassName: JedisDemo
 * @Description: JedisDemo连接测试五大数据类型
 * @Author XiaoPeng
 * @Date: 2023/4/6 9:59 PM
 */
public class JedisDemo {
    public static void main(String[] args) {
        //连接本地的 Redis 服务，自己的ip和端口和密码
        Jedis jedis = new Jedis("172.16.42.168",6379);
        // 如果 Redis 服务设置了密码，需要下面这行，没有就不需要
        jedis.auth("12345678");

        //String
        System.out.println("==========String==========");
        jedis.set("k1", "v1");
        System.out.println(jedis.get("k1"));
        jedis.mset("k2", "v2","k3","v3");
        System.out.println(jedis.mget("k2","k3"));
        //list
        System.out.println("==========list==========");
        jedis.lpush("mylist", "1","2","3");
        List<String> mylist = jedis.lrange("mylist", 0, -1);
        for (String s : mylist) {
            System.out.println(s);
        }
        //set
        System.out.println("==========set==========");
        jedis.sadd("orders","jd001");
        jedis.sadd("orders","jd002");
        jedis.sadd("orders","jd003");
        Set<String> set1 = jedis.smembers("orders");
        for (Iterator iterator = set1.iterator(); iterator.hasNext();) {
            String string = (String) iterator.next();
            System.out.println(string);
        }
        jedis.srem("orders","jd002");
        System.out.println(jedis.smembers("orders").size());

        //hash
        System.out.println("==========hash==========");
        jedis.hset("hash1","userName","lisi");
        System.out.println(jedis.hget("hash1","userName"));
        Map<String,String> map = new HashMap<String,String>();
        map.put("telphone","138xxxxxxxx");
        map.put("address","ali");
        map.put("email","334405060@qq.com");//课后有问题请给我发邮件
        jedis.hmset("hash2",map);
        List<String> result = jedis.hmget("hash2", "telphone","email");
        for (String element : result) {
            System.out.println(element);
        }

        //zset
        System.out.println("==========zset==========");
        jedis.zadd("zset01",60d,"v1");
        jedis.zadd("zset01",70d,"v2");
        jedis.zadd("zset01",80d,"v3");
        jedis.zadd("zset01",90d,"v4");

        List<String> zset01 = jedis.zrange("zset01", 0, -1);
        zset01.forEach(System.out::println);

        //key
        System.out.println("==========key==========");
        Set<String> keys = jedis.keys("*");
        for (Iterator iterator = keys.iterator(); iterator.hasNext();) {
            String key = (String) iterator.next();
            System.out.println(key);
        }
    }

}

三、SpringBoot集成lettuce

1. 概述

Lettuce是一个Redis的Java驱动包，Lettuce翻译为生菜，没错，就是吃的那种生菜，所以它的Logo就是生菜

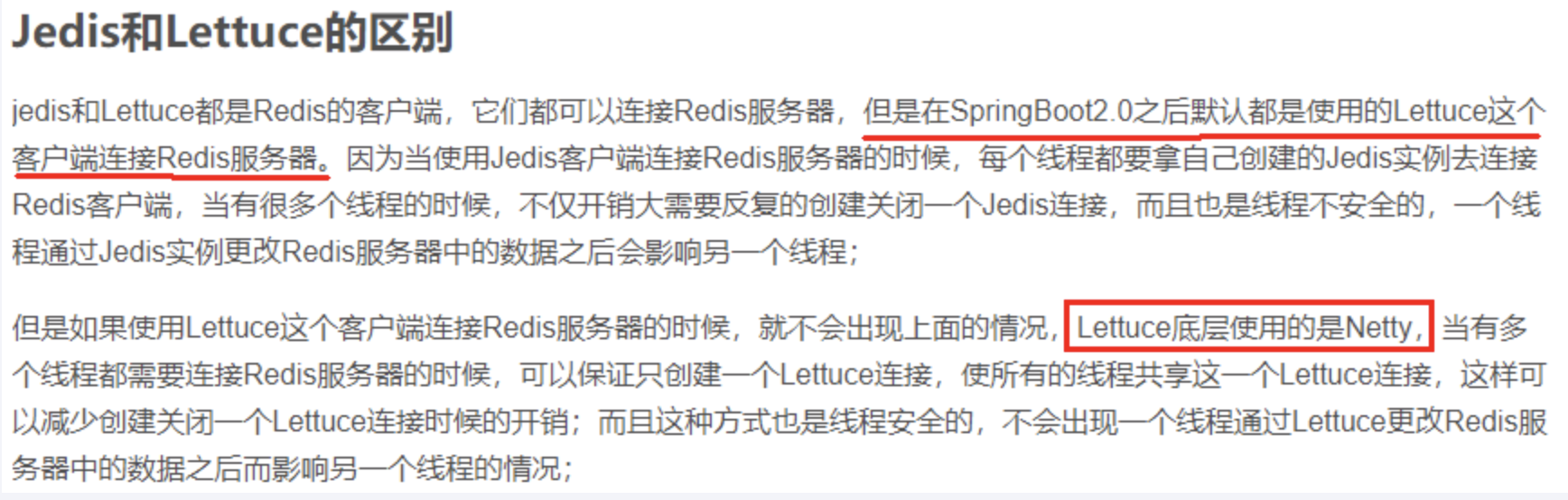

区别

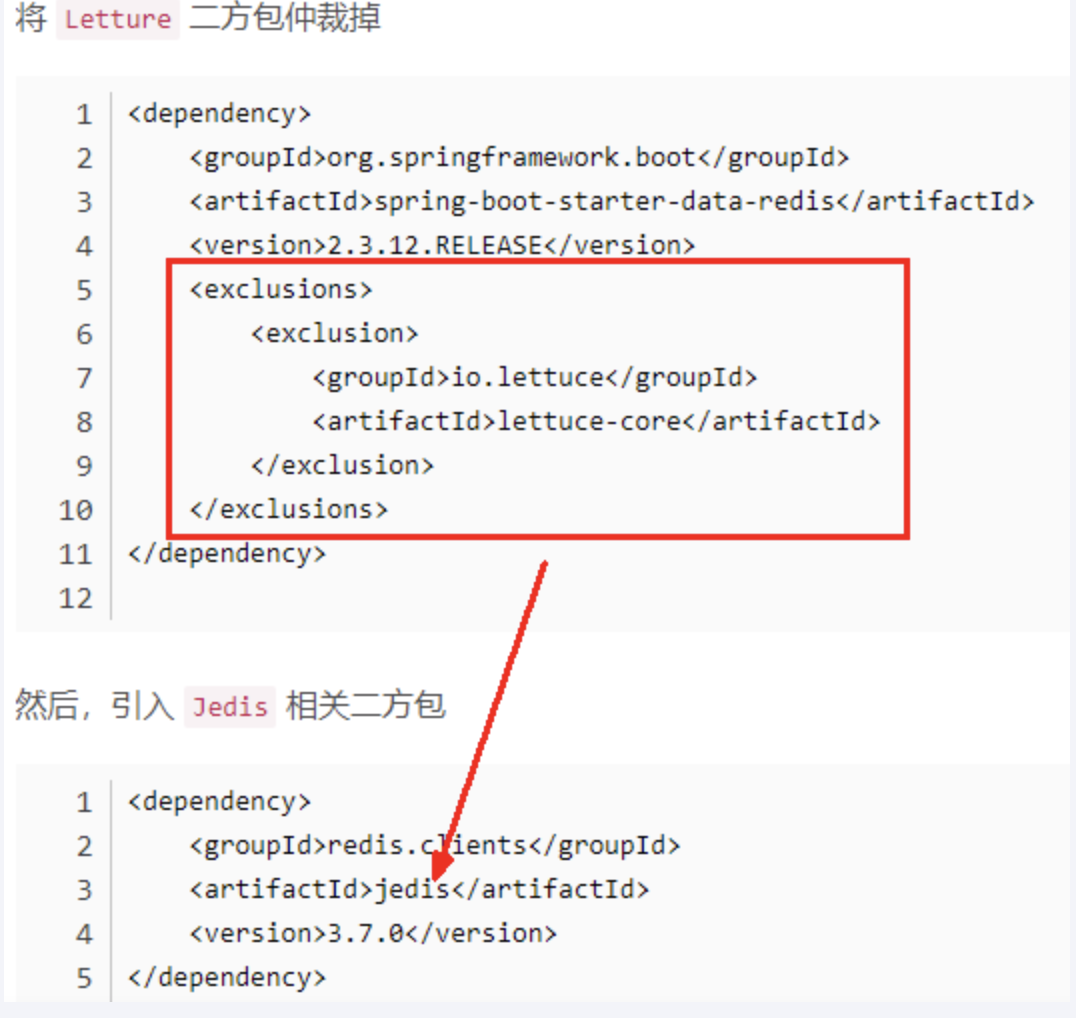

区别

2. 步骤

2.1 创建SpringBoot项目

很简单就不说了

2.2 改POM

这里主要是要加入lettuce依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.gong</groupId>
    <artifactId>SpringBootAndRedis</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>SpringBootAndRedis</name>
    <description>SpringBootAndRedis</description>
    <properties>
        <java.version>1.8</java.version>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.6.13</spring-boot.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--jedis-->
        <!--<dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
            <version>4.3.1</version>
        </dependency>-->

      <!--lettuce-->
        <dependency>
            <groupId>io.lettuce</groupId>
            <artifactId>lettuce-core</artifactId>
            <version>6.2.1.RELEASE</version>
        </dependency>
        <!--通用基础配置-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>{junit.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>{log4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>{lombok.version}</version>
            <optional>true</optional>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>{spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

        </dependencies>

    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <configuration>
                    <mainClass>com.gong.springbootandredis.SpringBootAndRedisApplication</mainClass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

3.3 写配置文件

server.port=7777
spring.application.name=SpringBootAndRedis

2.4 启动类

package com.gong.springbootandredis;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootAndRedisApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootAndRedisApplication.class, args);
    }

}

2.5 集成Lettuce案例

package com.gong.springbootandredis.lettuce;

import io.lettuce.core.RedisClient;
import io.lettuce.core.RedisURI;
import io.lettuce.core.SortArgs;
import io.lettuce.core.api.StatefulRedisConnection;
import io.lettuce.core.api.sync.RedisCommands;

import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Set;

/**
 * @ClassName: LettuceDemo
 * @Description: SpringBoot集成Lettuce
 * @Author XiaoPeng
 * @Date: 2023/4/6 10:26 PM
 */

public class LettuceDemo {
    public static void main(String[] args) {
        //使用构建器 RedisURI.builder
        RedisURI uri = RedisURI.builder()
                .redis("172.16.42.168")
                .withPort(6379)
                .withAuthentication("default", "12345678")
                .build();
        //创建连接客户端
        RedisClient client = RedisClient.create(uri);
        StatefulRedisConnection<String,String> connect = client.connect();
        //操作命令api
        RedisCommands<String, String> commands = connect.sync();
        //String
        System.out.println("=======String=========");
        commands.set("k1","1111");
        String s1 = commands.get("k1");
        System.out.println("String s ==="+s1);
        //list
        System.out.println("=======list=========");
        commands.lpush("myList2", "v1","v2","v3");
        List<String> list2 = commands.lrange("myList2", 0, -1);
        for(String s : list2) {
            System.out.println("list ssss==="+s);
        }
        //set
        System.out.println("=======set=========");
        commands.sadd("mySet2", "v1","v2","v3");
        Set<String> set = commands.smembers("mySet2");
        for(String s : set) {
            System.out.println("set ssss==="+s);
        }
        //hash
        System.out.println("=======hash=========");
        Map<String,String> map = new HashMap<>();
        map.put("k1","138xxxxxxxx");
        map.put("k2","xp");
        map.put("k3","xp@126.com");//课后有问题请给我发邮件
        commands.hmset("myHash2", map);

        Map<String,String> retMap = commands.hgetall("myHash2");
        for(String k : retMap.keySet()) {
            System.out.println("hash  k="+k+" , v=="+retMap.get(k));
        }
        //zset
        System.out.println("=======zset=========");
        commands.zadd("myZset2", 100.0,"s1",110.0,"s2",90.0,"s3");
        List<String> list3 = commands.zrange("myZset2",0,10);
        for(String s : list3) {
            System.out.println("zset ssss==="+s);
        }

        //sort
        System.out.println("=======sort=========");
        SortArgs sortArgs = new SortArgs();
        sortArgs.alpha();
        sortArgs.desc();

        List<String> list4 = commands.sort("myList2",sortArgs);
        for(String s : list4) {
            System.out.println("sort ssss==="+s);
        }

        //key
        System.out.println("=======key=========");
    }
}

四、SpringBoot集成RedisTemplate(推荐)

1. 单机

1.1 创建SpringBoot项目

很简单就不说了

1.2改POM

这里主要是要加入SpringBoot与Redis整合依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.gong</groupId>
    <artifactId>SpringBootAndRedis</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>SpringBootAndRedis</name>
    <description>SpringBootAndRedis</description>
    <properties>
        <java.version>1.8</java.version>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.6.13</spring-boot.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--SpringBoot与Redis整合依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>
        <!--swagger2-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>
        <!--通用基础配置-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>{junit.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>{log4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>{lombok.version}</version>
            <optional>true</optional>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>{spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

        </dependencies>

    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <configuration>
                    <mainClass>com.gong.springbootandredis.SpringBootAndRedisApplication</mainClass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

1.3 主启动类

package com.gong.springbootandredis;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootAndRedisApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootAndRedisApplication.class, args);
    }

}

1.4 写配置文件

server.port=7777
spring.application.name=SpringBootAndRedis

# ========================logging=====================
logging.level.root=info
logging.level.com.gong.springbootandredis=info
logging.pattern.console=%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger- %msg%n

logging.file.name=D:/mylogs2023/redis7_study.log
logging.pattern.file=%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger- %msg%n

# ========================swagger=====================
spring.swagger2.enabled=true
#在springboot2.6.X结合swagger2.9.X会提示documentationPluginsBootstrapper空指针异常，
#原因是在springboot2.6.X中将SpringMVC默认路径匹配策略从AntPathMatcher更改为PathPatternParser，
# 导致出错，解决办法是matching-strategy切换回之前ant_path_matcher
spring.mvc.pathmatch.matching-strategy=ant_path_matcher

# ========================redis单机=====================
spring.redis.database=0
# 修改为自己真实IP
spring.redis.host=192.168.111.185
spring.redis.port=6379
spring.redis.password=111111
spring.redis.lettuce.pool.max-active=8
spring.redis.lettuce.pool.max-wait=-1ms
spring.redis.lettuce.pool.max-idle=8
spring.redis.lettuce.pool.min-idle=0

1.5 配置类

①Redis配置类

package com.gong.springbootandredis.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.lettuce.LettuceConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

/**
 * @ClassName: RedisConfig
 * @Description: TODO
 * @Author XiaoPeng
 * @Date: 2023/4/7 4:29 PM
 */
@Configuration
public class RedisConfig {
    /**
     * redis序列化的工具配置类，下面这个请一定开启配置
     * 127.0.0.1:6379> keys *
     * 1) "ord:102"  序列化过
     * 2) "\xac\xed\x00\x05t\x00\aord:102"   野生，没有序列化过
     * this.redisTemplate.opsForValue(); //提供了操作string类型的所有方法
     * this.redisTemplate.opsForList(); // 提供了操作list类型的所有方法
     * this.redisTemplate.opsForSet(); //提供了操作set的所有方法
     * this.redisTemplate.opsForHash(); //提供了操作hash表的所有方法
     * this.redisTemplate.opsForZSet(); //提供了操作zset的所有方法
     * @param lettuceConnectionFactory
     * @return
     */
    @Bean
    public RedisTemplate<String, Object> redisTemplate(LettuceConnectionFactory lettuceConnectionFactory)
    {
        RedisTemplate<String,Object> redisTemplate = new RedisTemplate<>();

        redisTemplate.setConnectionFactory(lettuceConnectionFactory);
        //设置key序列化方式string
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        //设置value的序列化方式json，使用GenericJackson2JsonRedisSerializer替换默认序列化
        redisTemplate.setValueSerializer(new GenericJackson2JsonRedisSerializer());

        redisTemplate.setHashKeySerializer(new StringRedisSerializer());
        redisTemplate.setHashValueSerializer(new GenericJackson2JsonRedisSerializer());

        redisTemplate.afterPropertiesSet();

        return redisTemplate;
    }
}

②Swagger配置类

注意修改自己的package

package com.gong.springbootandredis.config;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;

/**
 * @ClassName: SwaggerConfig
 * @Description: TODO
 * @Author XiaoPeng
 * @Date: 2023/4/7 4:29 PM
 */
@Configuration
@EnableSwagger2
public class SwaggerConfig {
    @Value("${spring.swagger2.enabled}")
    private Boolean enabled;

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .enable(enabled)
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.gong.springbootandredis")) //你自己的package
                .paths(PathSelectors.any())
                .build();
    }
    public ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("springboot利用swagger2构建api接口文档 "+"\t"+ DateTimeFormatter.ofPattern("yyyy-MM-dd").format(LocalDateTime.now()))
                .description("springboot+redis整合,有问题给管理员小鹏:334405060@126.com")
                .version("1.0")
                .termsOfServiceUrl("https://www.baidu.com/")
                .build();
    }
}

1.6 业务类

Service层

package com.gong.springbootandredis.service;

import lombok.extern.slf4j.Slf4j;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.UUID;
import java.util.concurrent.ThreadLocalRandom;

/**
 * @ClassName: OrderService
 * @Description: TODO
 * @Author XiaoPeng
 * @Date: 2023/4/7 4:38 PM
 */
@Slf4j
@Service
public class OrderService {
    public static final String ORDER_KEY = "order:";

    @Resource
    private RedisTemplate redisTemplate;
  //用子类StringRedisTemplate可以解决序列化带来的乱码问题

    public void addOrder(){
        int keyId = ThreadLocalRandom.current().nextInt(1000)+1;
        String orderNo = UUID.randomUUID().toString();
        redisTemplate.opsForValue().set(ORDER_KEY+keyId,"京东订单"+orderNo);
        log.info("=====>编号"+keyId+"的订单流水生成:{}",orderNo);
    }
    public String getOrderById(Integer id){
        String res = (String) redisTemplate.opsForValue().get(ORDER_KEY+id);
        log.info("=======查询到的订单>"+res);
        return res;
    }
}

Controller层

package com.gong.springbootandredis.controller;

import com.gong.springbootandredis.service.OrderService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @ClassName: OrderController
 * @Description: TODO
 * @Author XiaoPeng
 * @Date: 2023/4/7 4:38 PM
 */
@RestController
@Api(tags = "订单接口")
@Slf4j
public class OrderController {
    @Autowired
    private OrderService orderService;

    @ApiOperation("新增订单")
    @PostMapping("/order/add")
    public void addOrder(){
        orderService.addOrder();
    }

    @ApiOperation("根据id查询订单")
    @GetMapping("/order/{id}")
    public String getOrderById(@PathVariable Integer id){
        return orderService.getOrderById(id);
    }

}

1.7 测试

访问Swaggerhttp://ip:端口/swagger-ui.html

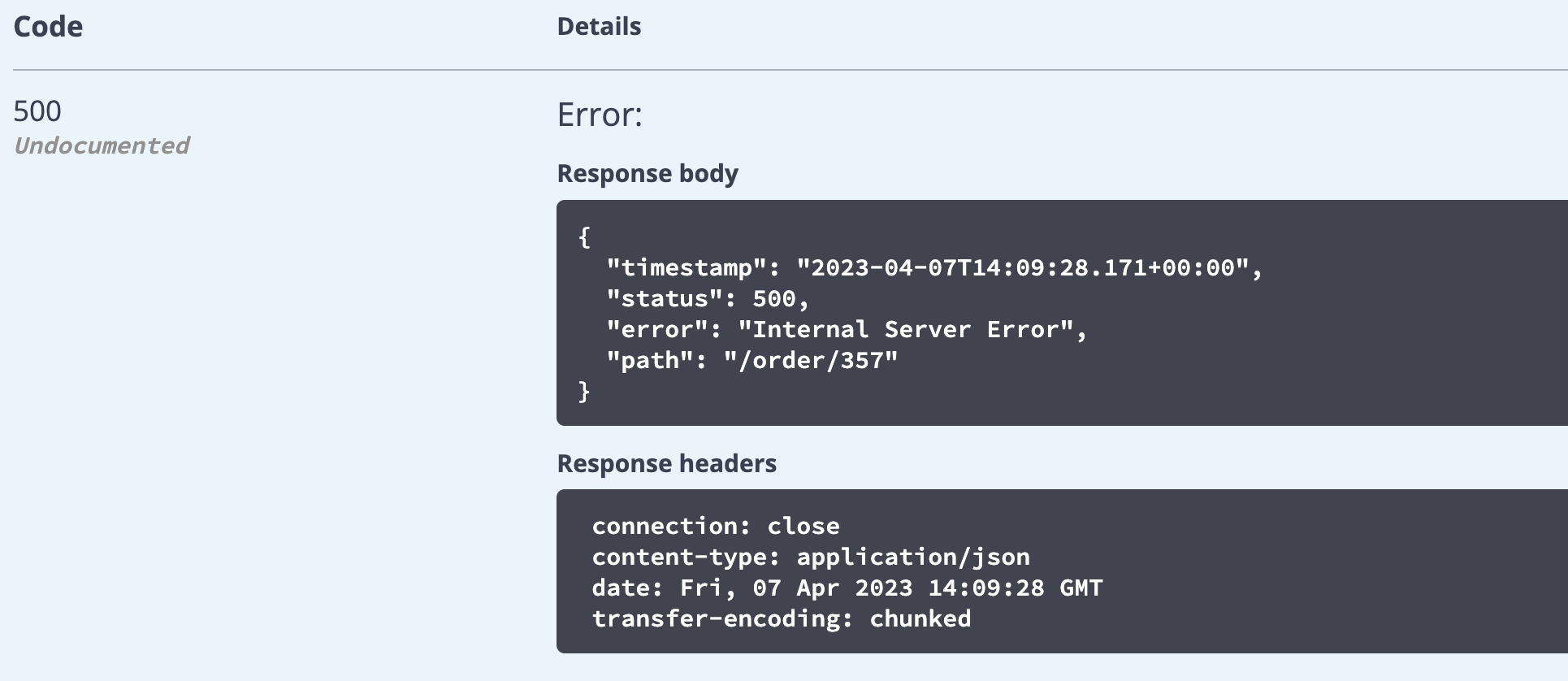

Swagger测试

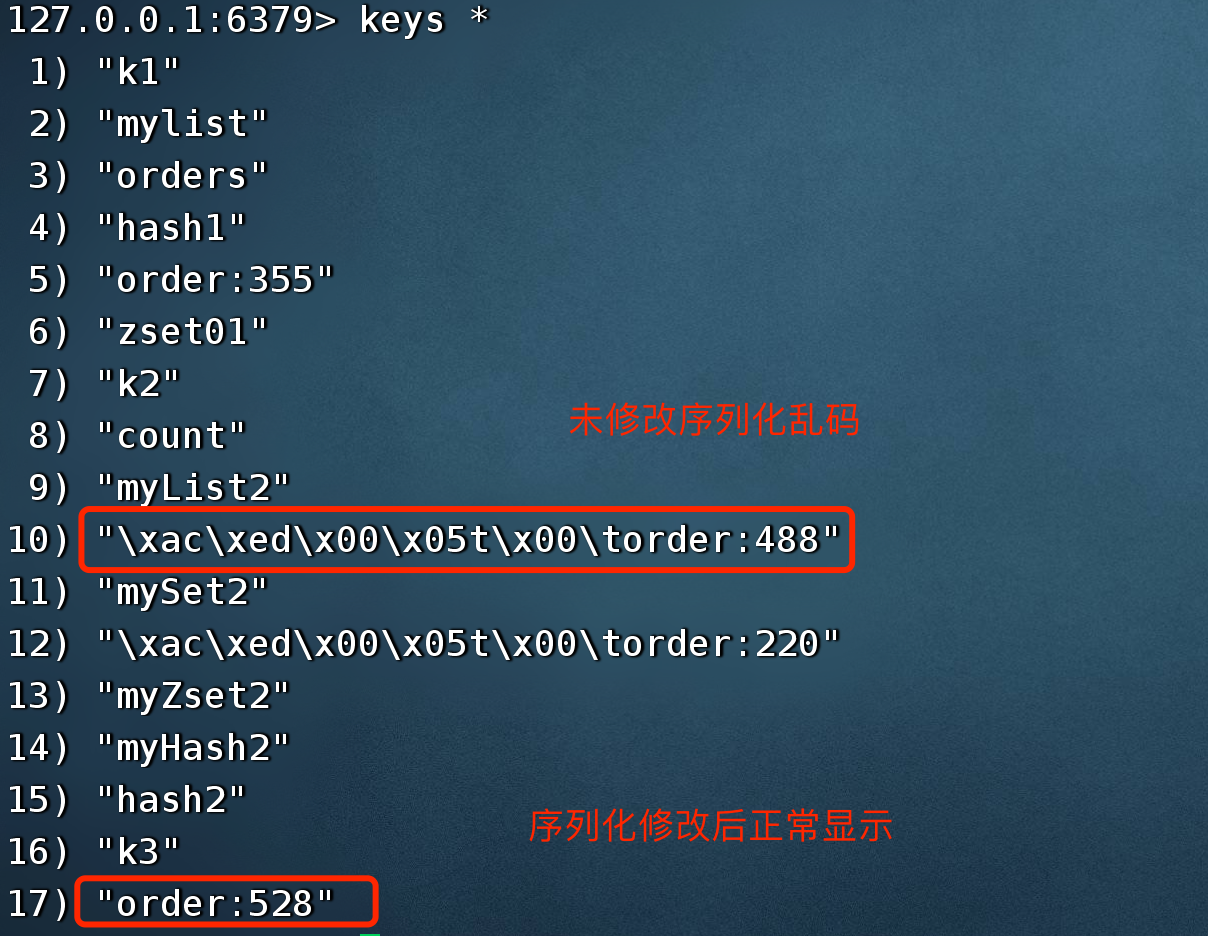

==序列化问题==

序列化问题

配置Redis配置文件即可解决或者使用StringRedisTemplate替换RedisTemplate

原因

键(key)和值(value)都是通过Spring提供的Serializer序列化到数据库的。
RedisTemplate默认使用的JdkSerializationRedisSerializer

StringRedisTemplate默认使用的是StringRedisSerializer。
KEY被序列化成这样，线上通过KEY去查询对应的VALUE非常不方便，

2. 集群

主要不同在配置文件呢里

2.1 启动集群和创建SpringCloudBoot项目

集群创建和启动其他文章有详细方法这里不赘述

我这里集群采用的是四主四从

2.2 改POM

这里主要是要加入SpringBoot与Redis整合依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.gong</groupId>
    <artifactId>SpringBootAndRedis</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>SpringBootAndRedis</name>
    <description>SpringBootAndRedis</description>
    <properties>
        <java.version>1.8</java.version>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.6.13</spring-boot.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--SpringBoot与Redis整合依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>
        <!--swagger2-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>
        <!--通用基础配置-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>{junit.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>{log4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>{lombok.version}</version>
            <optional>true</optional>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>{spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

        </dependencies>

    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <configuration>
                    <mainClass>com.gong.springbootandredis.SpringBootAndRedisApplication</mainClass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

2.3 主启动类

package com.gong.springbootandredis;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootAndRedisApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringBootAndRedisApplication.class, args);
    }

}

2.4 写配置文件

注意修改自己的集群ip和密码

server.port=7777
spring.application.name=SpringBootAndRedis

# ========================logging=====================
logging.level.root=info
logging.level.com.gong.springbootandredis=info
logging.pattern.console=%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger- %msg%n

logging.file.name=D:/mylogs2023/redis7_study.log
logging.pattern.file=%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger- %msg%n

# ========================swagger=====================
spring.swagger2.enabled=true
#在springboot2.6.X结合swagger2.9.X会提示documentationPluginsBootstrapper空指针异常，
#原因是在springboot2.6.X中将SpringMVC默认路径匹配策略从AntPathMatcher更改为PathPatternParser，
# 导致出错，解决办法是matching-strategy切换回之前ant_path_matcher
spring.mvc.pathmatch.matching-strategy=ant_path_matcher

# ========================redis集群=====================
spring.redis.password=111111
# 获取失败 最大重定向次数
spring.redis.cluster.max-redirects=3
spring.redis.lettuce.pool.max-active=8
spring.redis.lettuce.pool.max-wait=-1ms
spring.redis.lettuce.pool.max-idle=8
spring.redis.lettuce.pool.min-idle=0
spring.redis.cluster.nodes=172.16.42.168:6381,172.16.42.168:6382,172.16.42.169:6383,172.16.42.169:6384,172.16.42.170:6385,172.16.42.170:6386,172.16.42.170:6387,172.16.42.170:6388
#支持集群拓扑动态感应刷新,自适应拓扑刷新是否使用所有可用的更新，默认false关闭
spring.redis.lettuce.cluster.refresh.adaptive=true
#定时刷新
spring.redis.lettuce.cluster.refresh.period=2000

2.5 配置类

①Redis配置类

package com.gong.springbootandredis.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.lettuce.LettuceConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

/**
 * @ClassName: RedisConfig
 * @Description: TODO
 * @Author XiaoPeng
 * @Date: 2023/4/7 4:29 PM
 */
@Configuration
public class RedisConfig {
    /**
     * redis序列化的工具配置类，下面这个请一定开启配置
     * 127.0.0.1:6379> keys *
     * 1) "ord:102"  序列化过
     * 2) "\xac\xed\x00\x05t\x00\aord:102"   野生，没有序列化过
     * this.redisTemplate.opsForValue(); //提供了操作string类型的所有方法
     * this.redisTemplate.opsForList(); // 提供了操作list类型的所有方法
     * this.redisTemplate.opsForSet(); //提供了操作set的所有方法
     * this.redisTemplate.opsForHash(); //提供了操作hash表的所有方法
     * this.redisTemplate.opsForZSet(); //提供了操作zset的所有方法
     * @param lettuceConnectionFactory
     * @return
     */
    @Bean
    public RedisTemplate<String, Object> redisTemplate(LettuceConnectionFactory lettuceConnectionFactory)
    {
        RedisTemplate<String,Object> redisTemplate = new RedisTemplate<>();

        redisTemplate.setConnectionFactory(lettuceConnectionFactory);
        //设置key序列化方式string
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        //设置value的序列化方式json，使用GenericJackson2JsonRedisSerializer替换默认序列化
        redisTemplate.setValueSerializer(new GenericJackson2JsonRedisSerializer());

        redisTemplate.setHashKeySerializer(new StringRedisSerializer());
        redisTemplate.setHashValueSerializer(new GenericJackson2JsonRedisSerializer());

        redisTemplate.afterPropertiesSet();

        return redisTemplate;
    }
}

②Swagger配置类

注意修改自己的package

package com.gong.springbootandredis.config;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;

/**
 * @ClassName: SwaggerConfig
 * @Description: TODO
 * @Author XiaoPeng
 * @Date: 2023/4/7 4:29 PM
 */
@Configuration
@EnableSwagger2
public class SwaggerConfig {
    @Value("${spring.swagger2.enabled}")
    private Boolean enabled;

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .enable(enabled)
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.gong.springbootandredis")) //你自己的package
                .paths(PathSelectors.any())
                .build();
    }
    public ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("springboot利用swagger2构建api接口文档 "+"\t"+ DateTimeFormatter.ofPattern("yyyy-MM-dd").format(LocalDateTime.now()))
                .description("springboot+redis整合,有问题给管理员小鹏:334405060@126.com")
                .version("1.0")
                .termsOfServiceUrl("https://www.baidu.com/")
                .build();
    }
}

2.6 业务类

Service层

package com.gong.springbootandredis.service;

import lombok.extern.slf4j.Slf4j;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.UUID;
import java.util.concurrent.ThreadLocalRandom;

/**
 * @ClassName: OrderService
 * @Description: TODO
 * @Author XiaoPeng
 * @Date: 2023/4/7 4:38 PM
 */
@Slf4j
@Service
public class OrderService {
    public static final String ORDER_KEY = "order:";

    @Resource
    private RedisTemplate redisTemplate;
  //用子类StringRedisTemplate可以解决序列化带来的乱码问题

    public void addOrder(){
        int keyId = ThreadLocalRandom.current().nextInt(1000)+1;
        String orderNo = UUID.randomUUID().toString();
        redisTemplate.opsForValue().set(ORDER_KEY+keyId,"京东订单"+orderNo);
        log.info("=====>编号"+keyId+"的订单流水生成:{}",orderNo);
    }
    public String getOrderById(Integer id){
        String res = (String) redisTemplate.opsForValue().get(ORDER_KEY+id);
        log.info("=======查询到的订单>"+res);
        return res;
    }
}

Controller层

package com.gong.springbootandredis.controller;

import com.gong.springbootandredis.service.OrderService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @ClassName: OrderController
 * @Description: TODO
 * @Author XiaoPeng
 * @Date: 2023/4/7 4:38 PM
 */
@RestController
@Api(tags = "订单接口")
@Slf4j
public class OrderController {
    @Autowired
    private OrderService orderService;

    @ApiOperation("新增订单")
    @PostMapping("/order/add")
    public void addOrder(){
        orderService.addOrder();
    }

    @ApiOperation("根据id查询订单")
    @GetMapping("/order/{id}")
    public String getOrderById(@PathVariable Integer id){
        return orderService.getOrderById(id);
    }

}

2.7 测试

2.8 常见问题

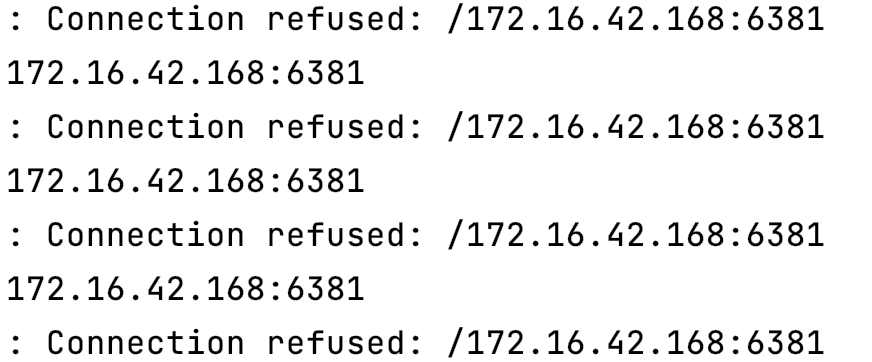

SpringBoot客户端没有感知到Redis集群的最新集群信息

例如Master6381主机宕机出现请求错误

image-20230407221051193

image-20230407221104355

导致原因

SpringBoot2.X版本。Redis默认的连接池采用Lettuce。当Redis集群节点发生变化后lettuce默认不会刷新节点拓扑

问题解决方法

①刷新节点集群拓扑动态感应（官方推荐）

#支持集群拓扑动态感应刷新,自适应拓扑刷新是否使用所有可用的更新，默认false关闭
spring.redis.lettuce.cluster.refresh.adaptive=true
#定时刷新
spring.redis.lettuce.cluster.refresh.period=2000

②排除Lettuce采用Jedis（不推荐）

排除Lettuce采用Jedis

③重新连接工厂实例（极度不推荐）

给TA打赏
共{{data.count}}人
人已打赏
JedisLettuceredisRedisTemplateSpringBoot
Redis

Redis集群搭建、扩容、缩容、重启方法

2023-4-6 13:39:31

Python基础Python笔记

Python-format占位符的详细用法

2021-10-10 16:16:53

1 条回复 A文章作者 M管理员
❯
购物车
优惠劵
有新私信 私信列表
搜索
客服

  • 扫码打开当前页

返回顶部
